Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper

Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper

Hình ảnh lớn :  Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper

Thông tin chi tiết sản phẩm:
Nguồn gốc: Anhui
Hàng hiệu: Innovo Bochen
Chứng nhận: CE
Số mô hình: SFC-1500/1700/1900
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: 65000-85000USD
chi tiết đóng gói: Túi chân không
Thời gian giao hàng: 45 ngày
Khả năng cung cấp: 30 bộ mỗi tháng
Tiếp xúc

Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper

Sự miêu tả
Kiểu lái xe: Lái xe điện Độ dày giấy xuống: Các tông và sáo 400gsm-10mm
Tốc độ làm việc dòng (M/phút): 150-160 Giá kỳ hạn FOB: 70000-80000USD
Kích thước tấm tối thiểu: 1500: 40*45cm 1700: 45*45cm Loại cán: Tấm bìa cứng+CARUGATOR+CAPTATOR
Kích thước vật liệu tối đa: 1500*1500mm và 1700*1700mm Kích thước con lăn keo: Con lăn anilox đường kính 160mm
Điều chỉnh: Điều chỉnh một phím

5ply Sheet To Sheet Laminating Machine for Corrugated Paper with Automatic Servo Control and Precision Servo Control
Performance Characteristics
  • Laminates combinations of two corrugated boards and any top sheet to produce 2-layer, 3ply, 4ply, 5ply, 7ply products
  • Handles various laminating types: corrugated + corrugated + cardboard, corrugated + cardboard, cardboard + gray board + cardboard, etc.
  • Automatic paper detection with servo correction technology for precise top-bottom paper alignment
  • Imported servo motor control system with Japan NITTA suction belt and lead edge feeding
  • Multifunctional rack accommodates curved corrugated materials
  • 160mm stainless steel glue roller with fine anilox grinding for even coating
  • Dual-use lifting platform with pre-stacker structure
  • Polyethylene-coated rollers for automatic glue release
  • Circulating glue system reduces waste and stabilizes adhesion
  • One-touch machine adjustment via paper size input
  • Integrated video monitoring system
Technical Specifications
Model SFC1500 SFC1700 SFC1900 SFC2200
Max size 1500×1500mm 1700×1700mm 1900×1900mm 2200×2100mm
Min size 360×380mm 380×400mm 450×450mm 500×500mm
Top Paper 120-800g
Bottom paper 400gsm-10mm Corrugated board and cardboard
Max speed 160m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1-2.5mm
Structural Features
  • Advanced transmission control system with automatic paper size adjustment
  • Computerized high-speed fitting (up to 12,000 pieces/hour)
  • Chuanliu-type air supply head with multiple nozzle sets
  • Feida Block system for low stack cardboard handling
  • Multiple electric eyes for precise paper alignment
  • Full-function electronic control with HMI and PLC monitoring
  • Automatic glue replenishment with recycling system
Key Components

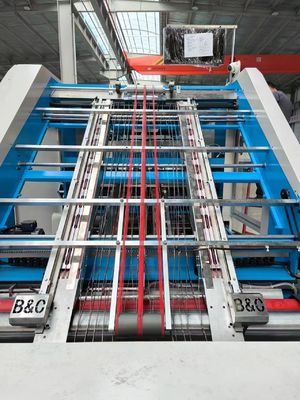

1. Bottom Paper Feeding
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 0

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.

2. Top Sheet Feeding Mechanism
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 1 Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 2

Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.

3. Electrical System
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 3

CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.

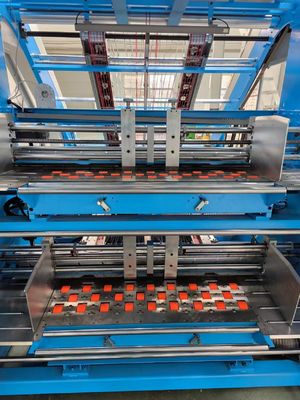

4. Pre-Stack Part
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 4

Pre-pile system with touch screen configuration for efficient setup and orientation.

5. Transmission System
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 5 Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 6

Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

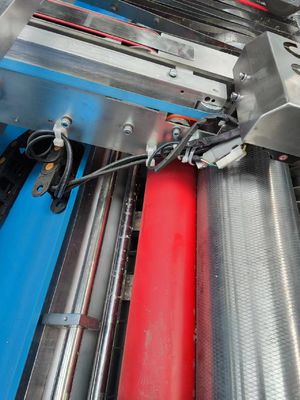

6. Positioning System & Glue Roller
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 7

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.

7. Touch Screen Operation
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 8

Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.

Optional Features
  • Leading Edge Feeding System (for large/thick sheets)
  • Shaftless Servo Feeder (for long top sheets)
  • Big Suction System (for multi-layer products)
  • Automatic Lubrication System (extends bearing life)
  • Video Monitoring System (remote operation monitoring)
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 9
