Thông tin chi tiết sản phẩm:
|
| Kích thước: | Chiều rộng 1500mm | Cách vận chuyển: | Bằng đường biển |
|---|---|---|---|
| Chức năng: | Hai tấm bìa cứng | Bảo hành: | 1 năm |
| Công suất sản xuất: | 50 tờ/phút | Tốc độ: | 0-40 m/phút |
| Loại doanh nghiệp: | Nhà sản xuất bán hàng trực tiếp | Hệ thống điều khiển: | Hệ thống điều khiển PLC |
| vật liệu cán: | Bìa cứng, giấy sóng, xốp EPE | Độ chính xác cán: | ±0,5mm |
| vi tính hóa: | Không. | Loại máy: | Máy ép các tông |
| Màu sắc: | Theo khách hàng yêu cầu | Điểm: | Máy pha trộn tấm |
| Vật liệu thô: | giấy kraft | Thời hạn thanh toán: | chuyển khoản ngân hàng |
| Các điểm bán hàng chính: | Dễ sử dụng | ||
| Làm nổi bật: | 1500mm cardboard laminating machine,high speed laminating machine 50 sheets/min,cardboard laminating machine with warranty |
||

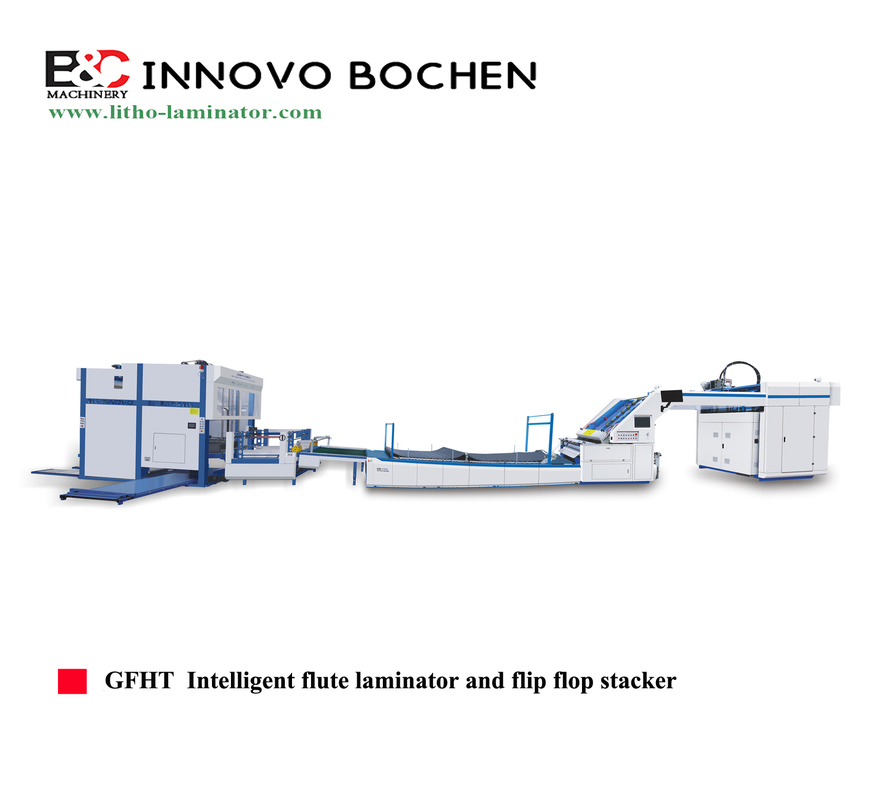

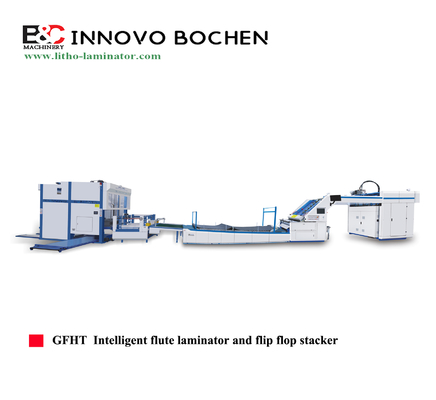

GFHT High Speed Flute Laminating Machine With Non-Stop Correction And Lead Edge Feeding For And Accurate Lamination
GFH Automatic High Speed Flute Laminating Machine
Machine overview:
GFH is the latest generation of high-speed automatic flute laminating machine developed by our company. The top paper of this machine adopts overlap feeding the principle of offset printer, and the top paper side gauge adopts the motion side gauge and the servo paper surface tracking and correction principle. And bottom paper use two lead edge system, no pressing rollers, use high flow suction to feed the paper, no pressure on paper. It can do best to keep the board original type. It can automatically detect the height of the corrugated paper, automatically adjust the gap between the rollers, automatically adjust the amount of glue, and the laminating roller does not need to be scrubbed. The maximum laminating speed can reach 200 meters/minute (24,000 sheets/hour). High speed, high efficiency and high precision are your ideal choice.
Performance characteristics:
1. Top sheet Overlap feeding+non -stop correction, high speed without losing accuracy. Speed can reach 180meters/min.
2. Bottom sheet Lead edge feeding system and high flow suction adsorption feeding. The bottom paper enter the glue roller directly (without pressure by roller, it will not destroy the corrugated paper stiffness), ensuring the pressure resistance of corrugated paper, and reducing the amount of glue by 30%, which not only saves money, but also solves the phenomenon of excessive gum.
3. The front pressure roller is made of new polyfluoroethylene material, which is free to wash, and then reduce the labor strength of the operator.
4. The whole machine has no handle, electric adjustment, automatic detection thickness, reducing the strength of the single -order work, and increasing the effective working time.
5. Because the machine uses overlap feeding, no gap correction without stop, so the unit time output increased by 50%, which greatly reduced the power consumption of the unit time, and it was truly increasing production and energy saving.
6. Adopts top sheet aligner system to ensure high accuracy. Feeding mode can be chosen overlap sheet or separation sheet type.
7. Digital design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet).
8. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.
9. Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
10. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.
11. The multifunctional rack of the bottom paper are suitable for curved corrugated.
12. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.
13. One -click adjustment of the whole machine (just enter the paper size).
14. Order memory function, one -click to transfer the previous order, convenient and fast.
15. Video monitoring.
16. Total 9 servos.
ZST High speed intelligent flip flop stacker
A. The pallet can be pushed into the machine automatically.
B. Matching 12,000 pcs/h speed flute laminating machine.
C.Flip mode can be changed to prevent the paper from being curved.
D. None stop collection function to improve production efficiency.
E. Reduce labor and reduce labor intensity.
F. Paper can be patted neatly and stacked into pile.
G.Machine can match with different manufacturers' flute laminating machine.
H.Paper can come out from back or side.
I. One -click adjustment (just enter the paper size).
J. Video monitoring (optional).
SPECIFICATION:
| MODEL | GFHT-1500 | GFHT-1700 | GFHT-1900 | GFHT-2200 |
| Max Sheet | 1500×1500mm | 1700×1700mm | 1900×1900mm | 2200*2100mm |
| Min Sheet | 360×380mm | 360×400mm | 500×500mm | 500*500mm |
| Top Paper Thickness | 120-800g | 120-800g | 120-800g | 120-800g |
| Max Speed | 200m/min | 200m/min | 200m/min | 200m/min |
| Precision | ±0.8-1mm | ±0.8-1mm | ±0.8-1mm | ±0.8-1mm |
| Power | 22KW | 25KW | 27KW | 30KW |
| Bottom Paper Thickness |
≤10mm(A-F corrugated board) ≥400g cardboard |
≤10mm(A-F corrugated board) ≥400g cardboard |
≤10mm(A-F corrugated board) ≥400g cardboard |
≤10mm(A-F corrugated board) ≥400g cardboard |
| Glue consumption | B flute: 15g/㎡ E flute: 20g/㎡ | |||
